Device layout

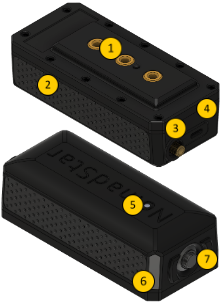

General layout

1. TM5 modular attachments system
2. Silicon grip
3. USB-C connector
4. RGB status LED
5. Aluminium identification plate
6. Power / Shutdown button

Component details

TM5 modular attachment system

Modular attachment system based on 3 M5 threads. Can be used to attach further accessories to your radio.

Silicon grip

Ensure a steady hold in hand.

RP-SMA antenna connector

Antenna connector allowing for antenna quick change while travelling across different LoRa regions.

USB-C connector

USB-C connector used to charge the Meteor Pro. It also support data transfer for firmware update and serial communication.

RGB status LED

Device status indication

Status	Meaning
OFF	Device shutdown / OFF
ON	Device powered ON
Rainbow blinking	New message received
Steady red	Low battery

Additionally, the LED can be customised and configured using the Meshtastic  ambient lighting feature.

Aluminium identification plate

Identification plate that can be engrave with custom information when ordering your Meteor Pro

Power / Shutdown button

Button use to power on/off the radio. Quick press to power ON. Hold 5 sec to power OFF.
